KEF Music Gallery
CEDIA Smart Home Awards - Highly commended - Best Showroom or Experience Centre, EMEA 2024
AV Awards Finalist 2024
Smart Building Awards Finalist 2024
Overview:
Neighbourhood: Fitzrovia, London
Type: Commercial
Size: 5,000 sq ft
General Contractor: NVB Construction
Project Architect & Interior Designer: Conran and Partners
-
• KMG is Controlled by Crestron Home, this system provides overarching control of the following sub systems:
• Lighting
• Shading - Podcast Curtain and Roller Blinds
• HVAC – Air Conditioning - This is source for Cooling and Heating.
• Door Entry - “Video Doorbell”
• Audio and Video - Including associated items, such as Projector Lift and Screens
• Intercom
-
• AP4-R Control:
• Mains Dimming
• Switch Loads
• DMX Ultamation Module
• Pharo
• DALI DT8 Loads via CP4 Custom Program (Ultamation)
• CP4-R Main Crestron Home Processor, pulls loads from AP4-R as Slave Lighting Processor

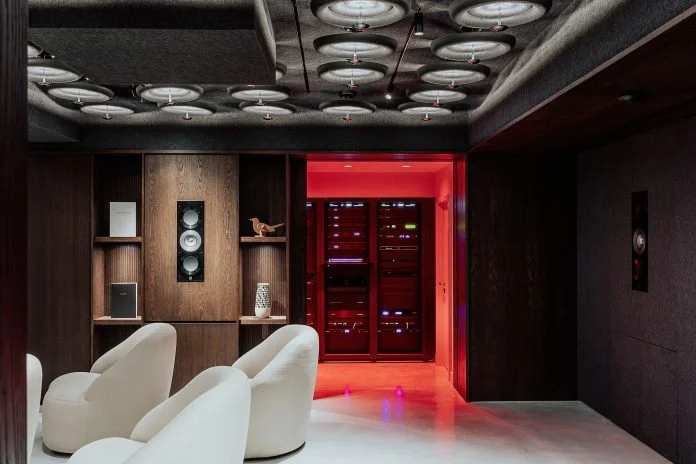

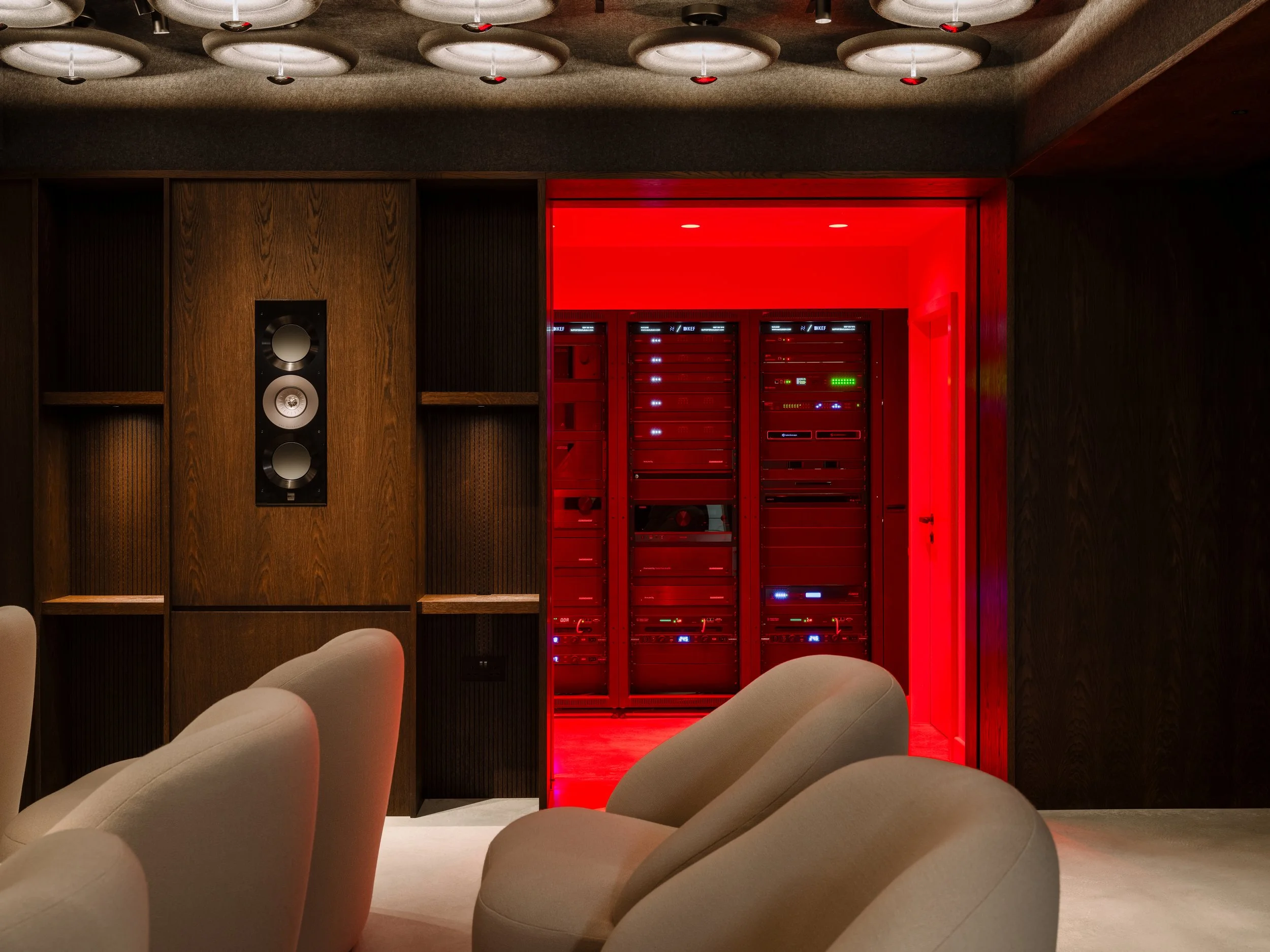

Lighting at Rack:
• Crestron DMX-C Downlights
• 1 x Horizon Keypad
-

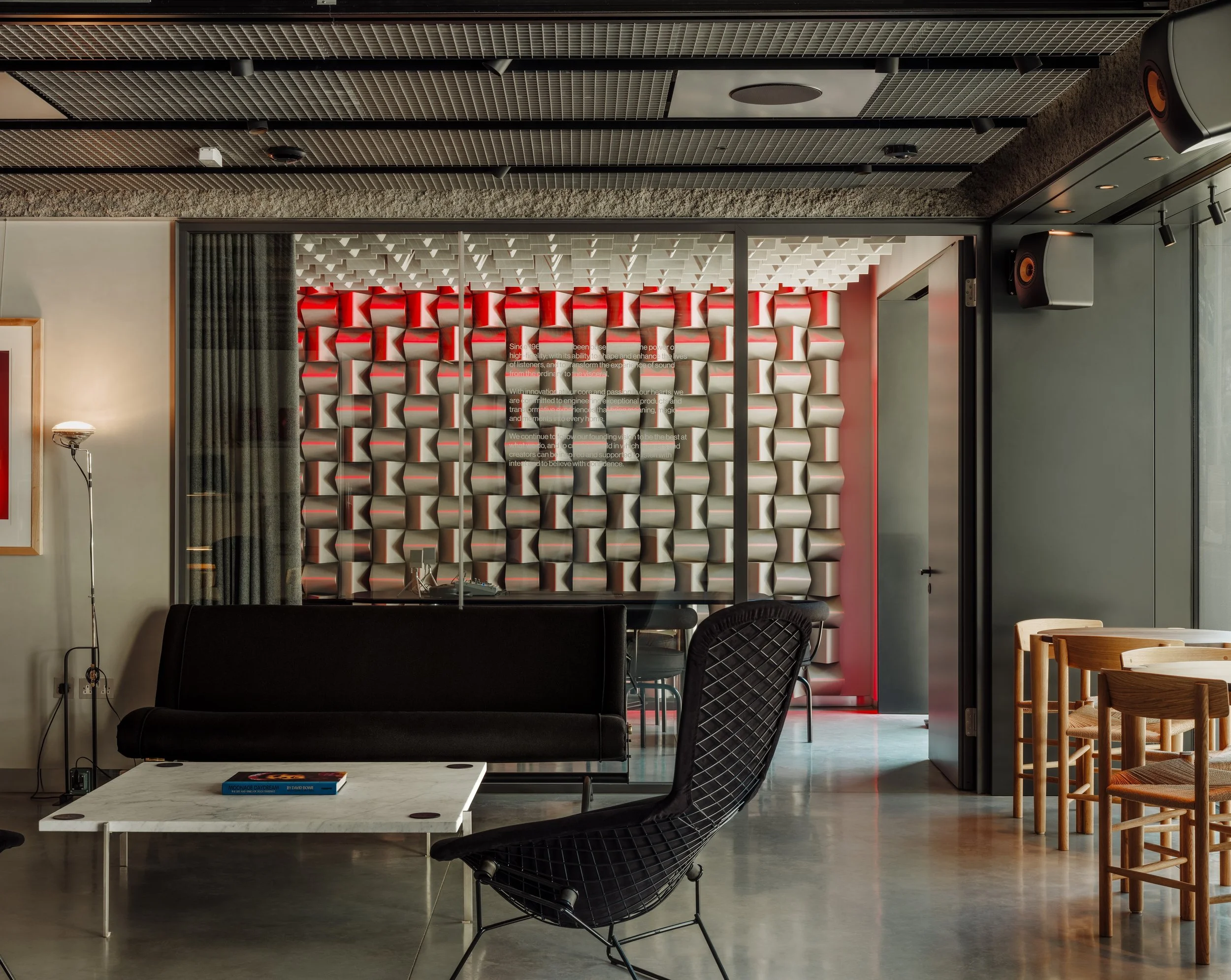

• 1 x Curtain Track Podcast
• 3 x Roller Blinds in Front Windows
-
-
• Unifi Panoramic, Bullet and Fixed Dome Cameras.
-
• CoolmasterNET for HVAC Integration
-
• Unifi, Router, Switches and AP’s
-
• 2n Video Entry Panel (Note: Is installed Lower than normal to meet Disability Requirement)
-

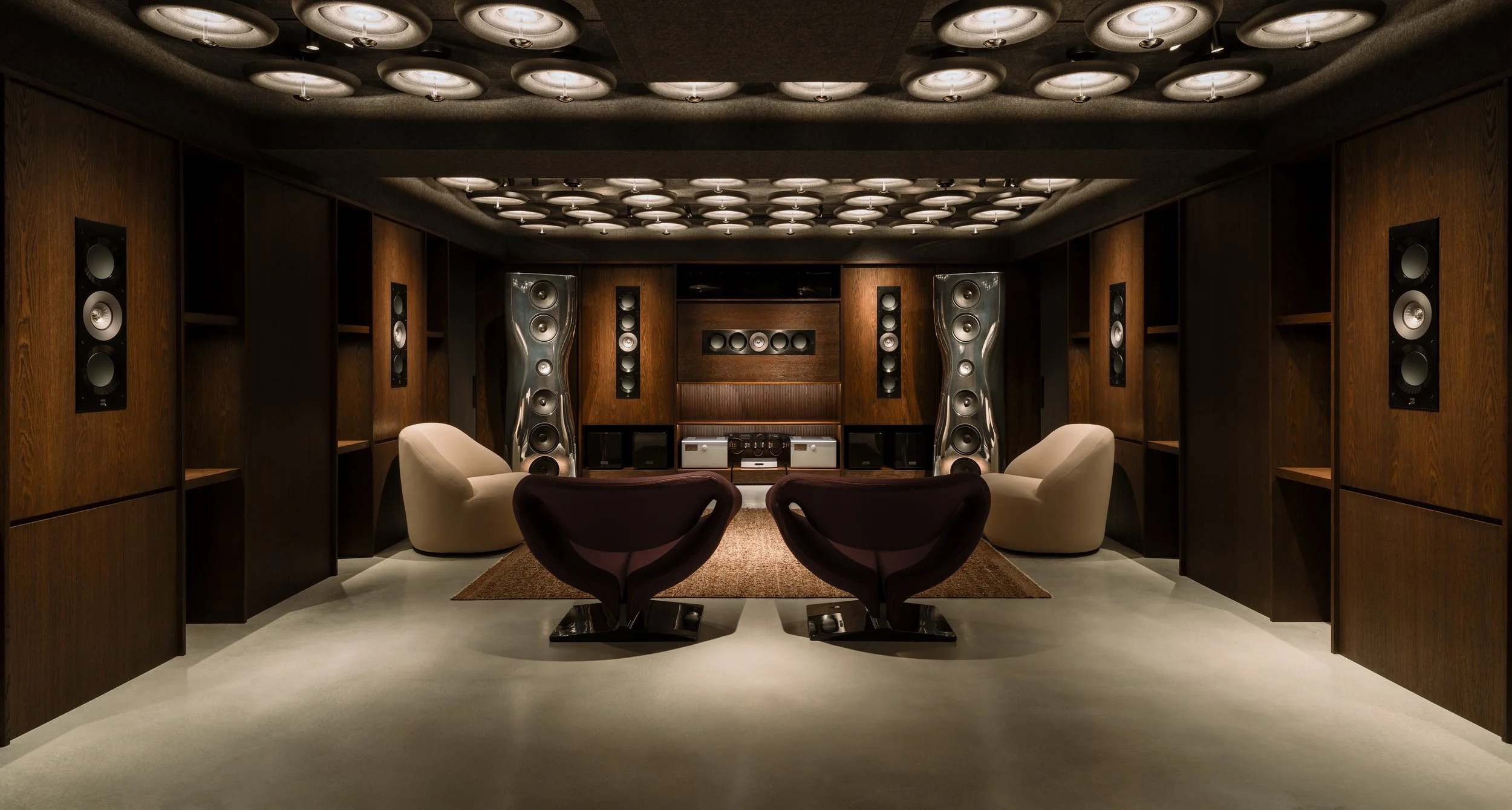

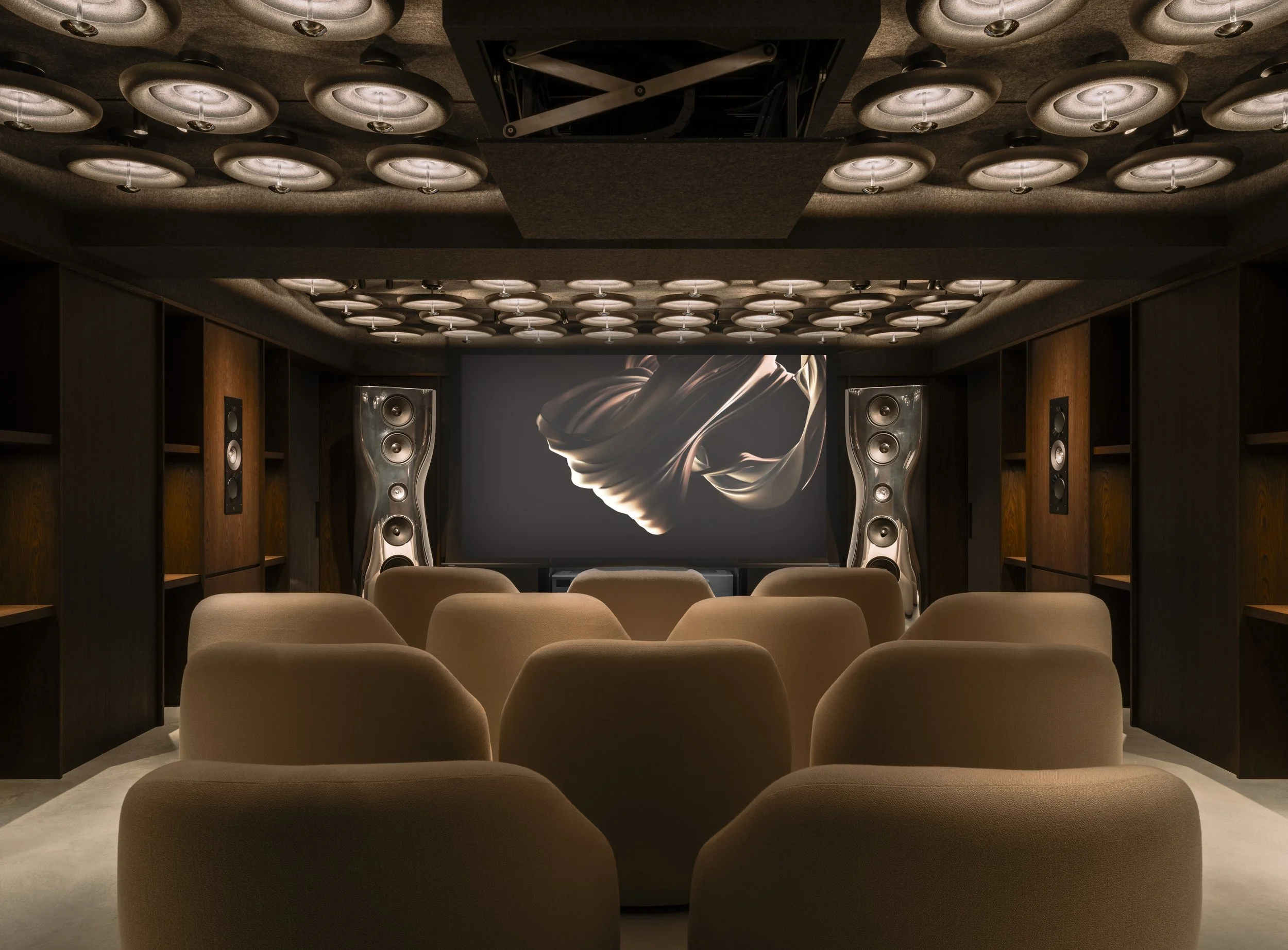

2 x KEF Muons
3 x KEF Ci5160 REF META THX – InWall
6 x KEF Ci3160 REF META THX – InWall
4 x KEF Ci250 RRM THX – In Ceiling
14 x KEF KC92 Subwoofers
Sony VW7000 Projector
Future Automation Lift
Stewart Film Screen
Envy 2 Pro Extreme MAD VR Video Processor
Powered by Trinnov Altitude32
+ Trinnov Power Amp 16 Channel – Fed by NVX
HDMI (Digital) and NAX (Analog) Input
1 x Crestron TSW-1070
1 x Horizon Keypad
1 x Crestron TSR-310
-
10 x KEF LS50 Bookshelf Speakers on
Custom Future Automation Mounts
8 x KEF Ci200RR THX
8 X KEF KF92 Subwoofers
Powered by Trinnov Altitude32 +
Trinnov Power Amps 16 channel + 8
channels – Feed by NVX HDMI (Digital)
and NAX (Analog) Input
1 x Crestron TSW1070
1 x Horizon Keypad
-

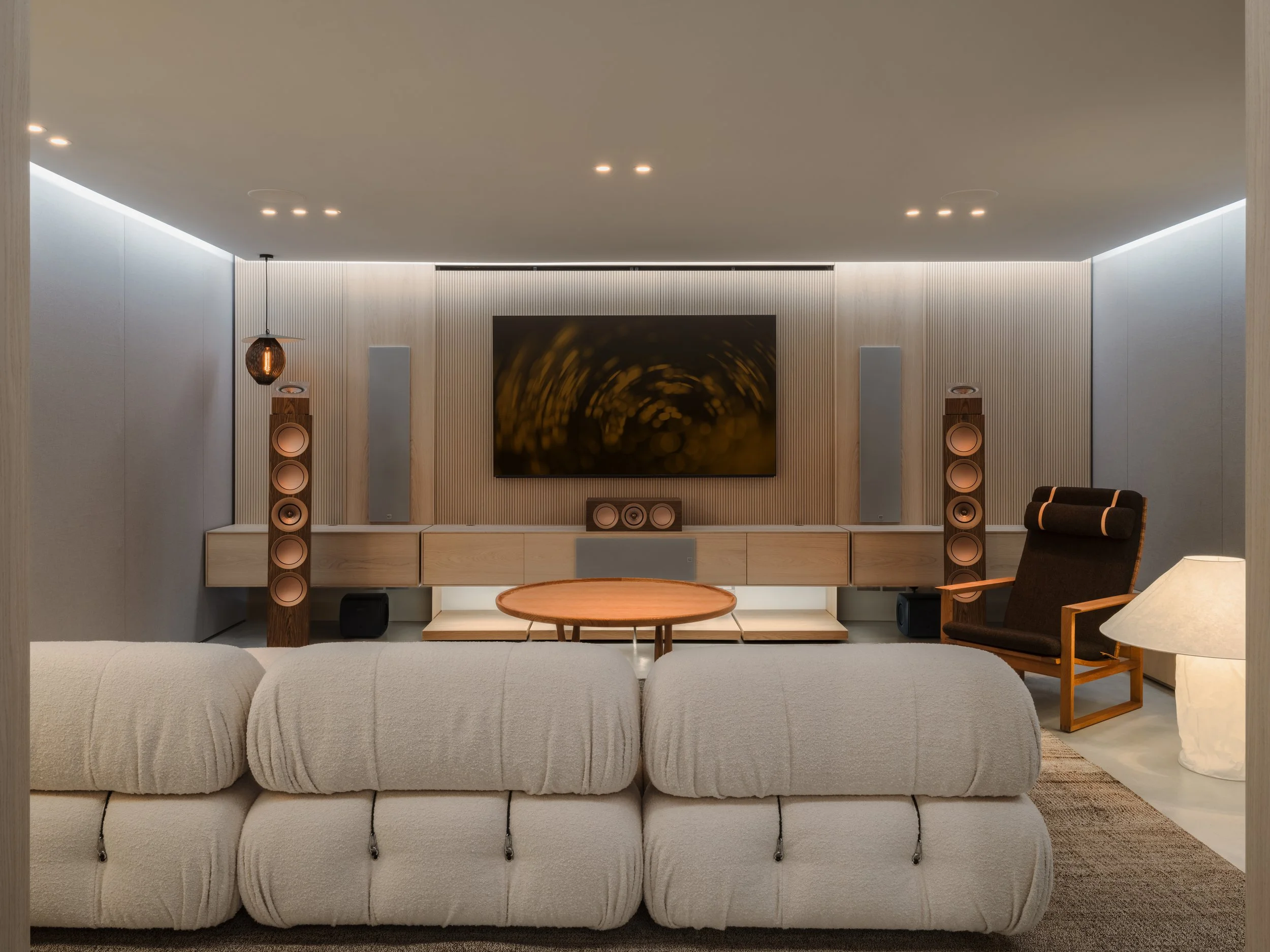

1 x Sony 77” OLED
1 x Custom Future Automation Lift – Up
and Down to Allow for Centre Channel
2 x KEF Ci5160RLM-THX – InWall
3 x KEF Ci3160RLM-THX – InWall
4 x KEF Ci160RR THX – In Ceiling
2 x KEF KC62 Subwoofers
1 x Yamaha A8A - Feed by NVX End
Point HDMI (Digital)
1 x Audio Control Pantages G4
1 x Audio Control Avalon G4
1 x Crestron TSW1070– in Joinery
1 x Horizon Keypad – In Joinery
1 x Crestron RF Gateway
1 x Crestron TSR310
+
1 x Audio Control Avalon G4 from
Crestron NAX for 2ch HiFi Channel
Setup, Independent NAX Zone.
-
1 x Sony 77” OLED – NVX End Point
4 Pairs of Ceiling Speakers – A, B, C, D for comparison
Ci160 QR
Ci200 QR
Ci200 ER
Ci200 RR THX
Powered by Crestron DM-NAX-8ZSA – Single Zone Output
Via AudioFlow Speaker Switch Custom Tile on Crestron Home UI.
1 x Crestron TSW-1070 – in Joinery
1 x Horizon Keypad – In Joinery
1 x Crestron RF Gateway
1 x Crestron TSR310
-
1 x Sony 42” OLED TV – Feed by NVX End Point HDMI (Digital)
Speaker Wall Plates Powered Directly by Crestron DM-NAX-8ZSA Zone
1 x Crestron TS1070
1 x Crestron Curtain Track
1 x Ultamation DMX Controlling Colour Changing Wall Wash - Directly into AP4-R Lighting Processor
-
4 x KEF Ci200RR THX
Powered Directly by Crestron DM-NAX-8ZSA – Bussed Zones
1 x Crestron TSW1070
-
2 x KEF Ci160RR THX2
1 x Horizon Keypad
Powered Directly by Crestron DM-NAX-8ZSA Zone
-
10 x KEF Ci160RR’s
1 x Audio Control Concert XR-6 - Feed by NVX End Point HDMI (Digital)
2 x Audio Control Pantages G4 – 10 x Speakers
2 x KEF Ci160RR THX Powered Directly by Crestron DMNAX-8ZSA Zone
1 x Faradite PIR via Contact Closure via Crestron C2N-UNI8IO
The Experience of Unparalleled Immersion
Covering 5,000 square feet and spread over two floors, KEF Music Gallery London is a one-of-a-kind brand experience destination where guests can discover the magic of great sound. Here, we collaborated with partners to deliver a uniquely immersive high-fidelity experiences.
KMG London was set out to be a multifunctional space; in addition to a showroom for KEF, it serves as, a podcast studio, an event and networking space, a training hub, a HiFi 2ch listening experience, a demonstration of a media room, a reference cinema and serves as coffee shop open to the public. And in addition, it serves as an example of our work and shows the capabilities of partner hardware brands utilized in the space. The performance goal was to provide a solution that would feature all the systems and elements of a high-end residential installation while being appropriate for a commercial environment and, at the forefront, provide an audio experience that matches the intended performance of the KEF product line. The space had to also be "future-proofed" in terms of foreseeable use cases, hardware changes, and event requirements. A high level of finish was required to keep in line with brand values and appeal to the corresponding target market. In each area of the project, we aimed to achieve the highest standards in performance, installation, reliability, and ease of use.
